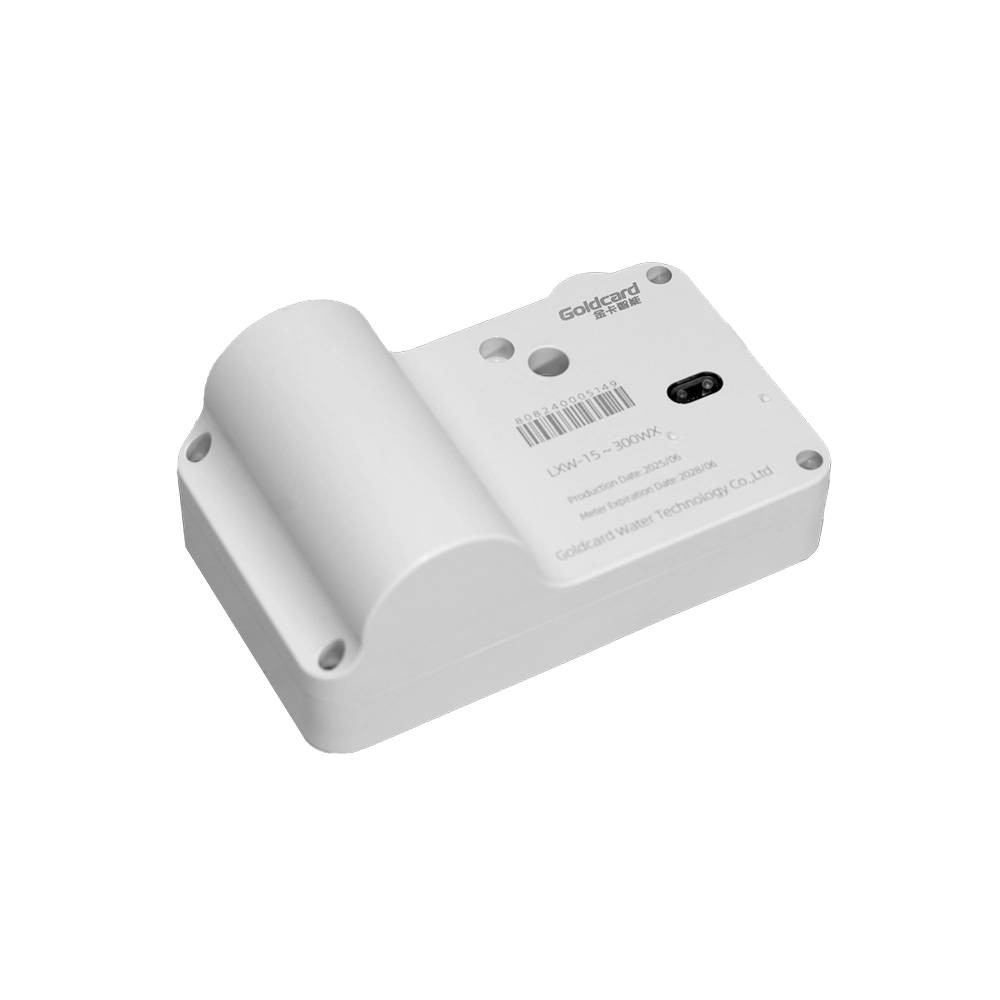

WTI Wireless Remote Transmission Module

WTI Wireless Remote Transmission Module

The LXW Series CAT.1 Smart Remote Transmission Module is an intelligent module with remote communication capabilities. The product integrates metering data acquisition, data storage, remote communication, and local infrared communication in one compact device. It features ultra-low power consumption, high measurement accuracy, and stable performance.The module can be retrofitted onto compatible mechanical water meters and is widely applicable for residential, commercial, and regional water supply systems. It communicates with the management platform via the CAT.1 network for data transmission and remote command execution, while supporting non- contact local maintenance or meter reading through handheld devices.

Main Advantages

Performance Advantages
  • IP68 protection, enabling long-term underwater operation.
  • Self-learning function frequency adjustment based on the signal conditions to extend battery life.
  • Goldcard’s unique patented antenna technology ensures stable communication,with signalstrength over 30% higher than that of typical products on the market.
Structural Advantages
  • Easy to install, with physical tamper-proofing and anti-theft alarm.
  • Compact modular design, suitable for installation in confined spaces and meter retrofitting.

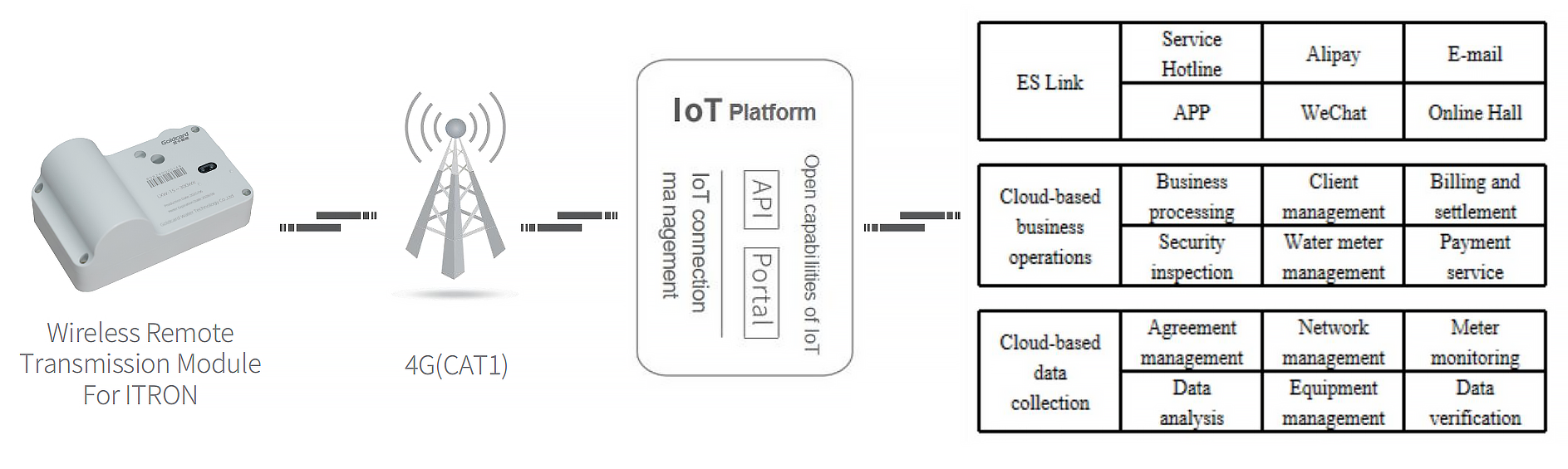

Solution Architecture Diagram

Technical Specifications

Name Wireless Remote Transmission Module
Electro-mechanical Conversion Error ≤1 pulse
Sampling Method Non-magnetic
Service Life ≥10 years
Protection Class IP68
Application DN15-DN300 (ITRON W/F)
Non-contact Key Remote communication and infrared
LED Indicator Status alerts for system error and local/remote communication
Remote Communication CAT.1; configurable upload period (Default: Daily)
Local Communication Infrared communication, configurable parameters


Data Storage

 Latest 30 days, half-hourly data

Latest 90 days, daily data

Latest 24 months, monthly data

10 abnormal alarm logs (such as low voltage, metering anomaly, etc.)
Event Logging Records of key events and alarms






Fault Detection

 Non-magnetic module metering error

Over-flow error

Reverse flow error

Voltage anomaly

Suspected leakage anomaly

Data storage anomaly

Dismantling anomaly

Clock anomaly

Remote communication failure, etc.
Success Rate of Primary Meter Reading ≥99%
Storage Environment -10℃ ~ +55℃

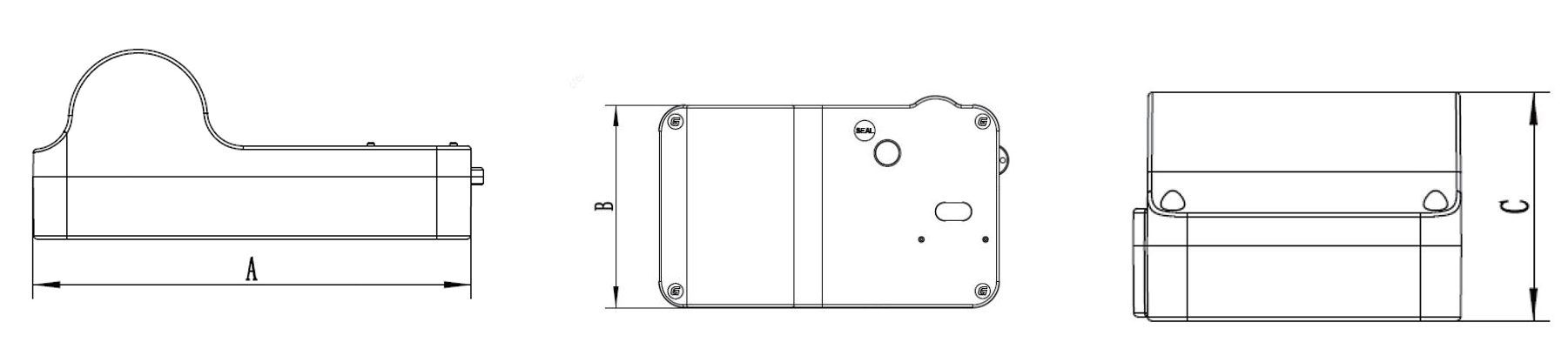

Dimensions

Length (A) Width (B) Height (C)
129 mm 77 mm 56 mm
